feat(specs): user-definable spec types as type cards (skills-for-specs)

[Rustam Sadykov (SBOne-Kenobi)]

A skills-like system for spec types: users/teams define their own kinds of specs as type cards — one markdown file per type, human-first prose plus a small machine-readable frontmatter core — registered per project and resolved through a registry that agents, tools, and the UI all read.

Design history (approaches considered, prior-art research, decision rounds) lives in the task-spec .thinkrail/context/TASK-spec-type-system.md (gitignored scratch); the durable decisions are promoted into packages/spec-graph/SPEC.md and the touched module specs.

What a type card is

---
name: decision
title: Decision record (ADR)
description: One significant, hard-to-reverse decision — context, options, outcome.
lifecycle: durable            # durable = ground truth · ephemeral = serves one piece of work
home: docs/decisions/          # a default, never enforced
sections: [Context, Options considered, Decision, Consequences]
statuses: [proposed, accepted, superseded]
---
Use when a choice is significant and hard to reverse; one decision per file.
## Quality bar
- States the rejected options and why — the part code can never reveal.

• Registry precedence: project .pi/spec-types/*.md (committed, team vocabulary) → (P2) user ~/.pi/agent/spec-types/ → seven built-ins: the original five (task-spec = ephemeral) plus charter (the project's declared stance on specs) and decision (MADR-shaped ADR).
• Lifecycle is first-class: durable specs are ground truth; ephemeral specs serve one piece of work and end by promotion into durable specs, then retire. Location is a default, never a rule.
• Advisory-only: the registry gates authoring (spec_create) with helpful errors; it never influences graph construction or which files are specs. Conformance warnings in spec_validate are recorded for P2.

Changes by layer

layer	change
pi-spec-graph/core	card parser (full YAML, fence-aware ## Template extraction) + SpecTypeRegistry (revalidate-on-read); built-ins embedded as string constants (bundle-safe — core compiles into the binary); frozen SPEC_TYPES tuple removed
pi-spec-graph/tools	new spec_types (list, or one card in full); spec_create validates type + per-card statuses against the registry and scaffolds from the card (Template → sections)
skill + workflow	registry-driven Types section; read the card before authoring norm; cards refine global rules, never override them
wire (v38)	SpecGraphSnapshot.types (SpecTypeInfo[]) + scoped spec.saveTypeCard (slug + is-a-card validated server-side; writes only .pi/spec-types/ — deliberately not a general fs write)
server spec	registry mapped into the snapshot; projectHasSpecs lifecycle-driven (custom ephemeral types can't signal "set up")
web (prototype)	type-aware Specs rows (description tooltips, ephemeral specs dimmed/italic), a types legend, and the type constructor dialog (guided form — the hints are the card schema's meaning — with a live markdown preview)

Where to find it in the UI

Right panel → SPECS tab → scroll to the bottom of the tree → the collapsed "SPEC TYPES (N)" row. Its ＋ button opens the constructor. (Known prototype limitation: the legend scrolls with the tree instead of being pinned — easy to miss on a long graph; candidate P2 polish.)

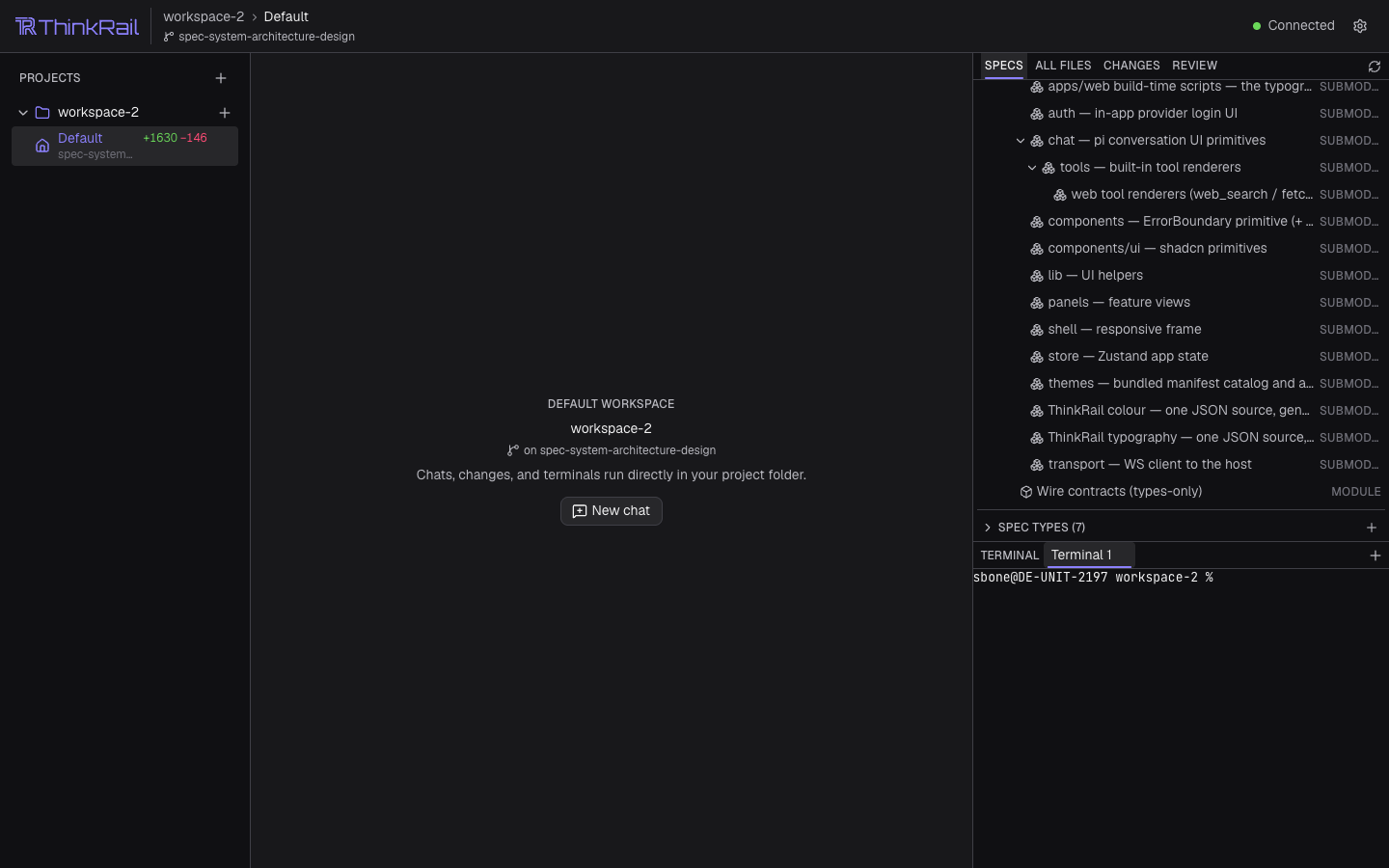

Specs tab — legend collapsed at the bottom

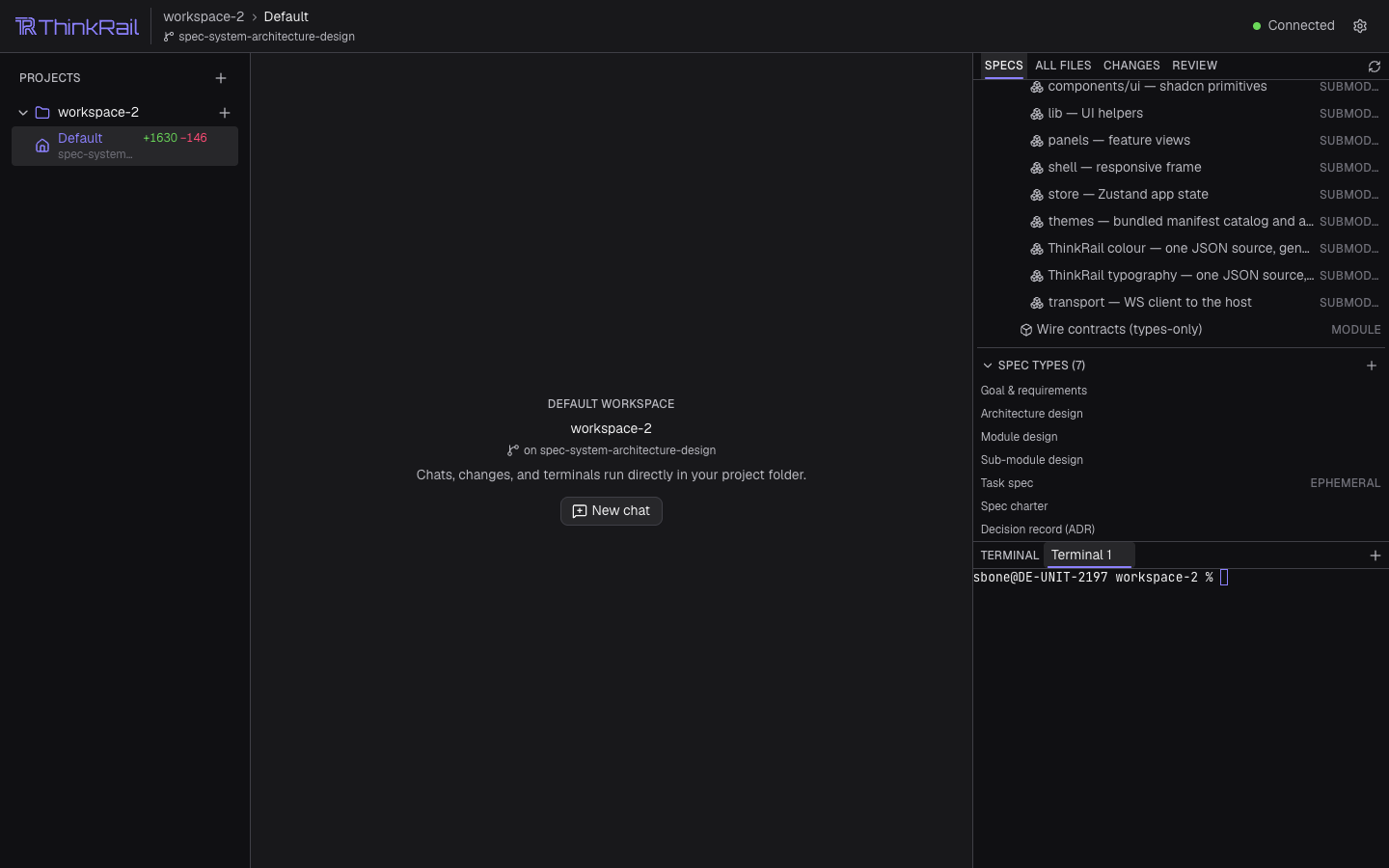

Legend expanded — the seven built-ins, lifecycle marked

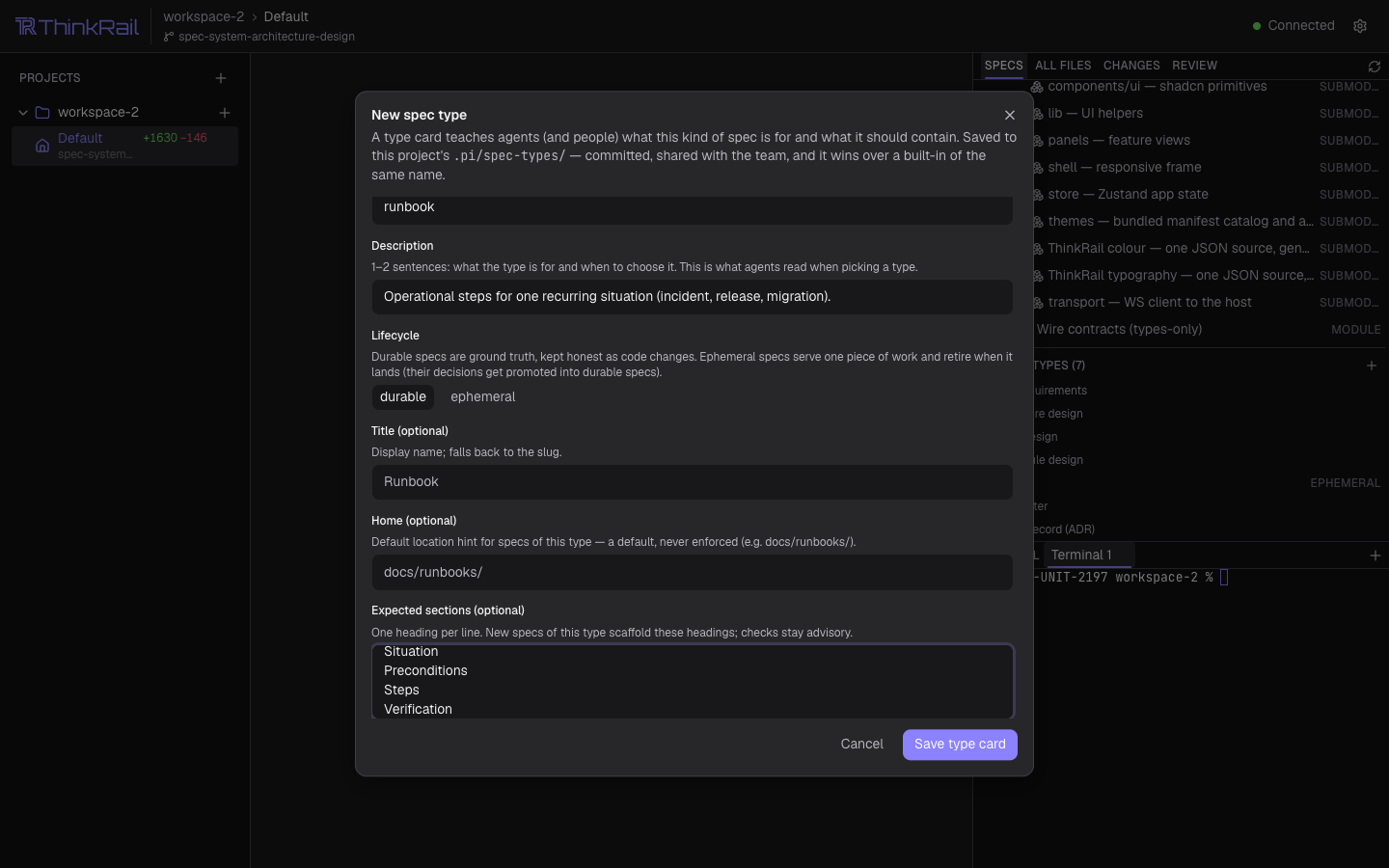

The type constructor — every field hint explains the card schema

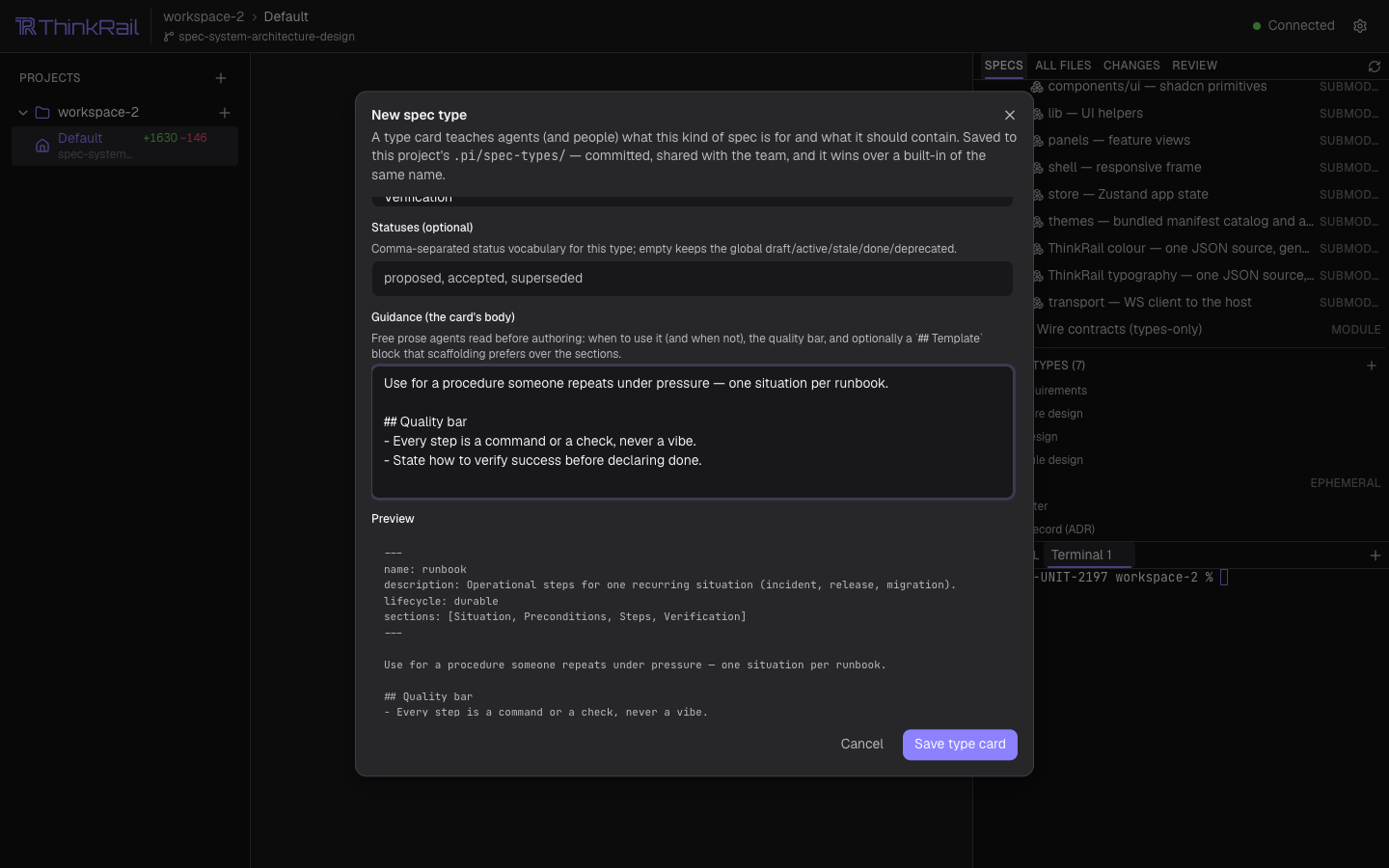

Live preview of the exact markdown that will be written

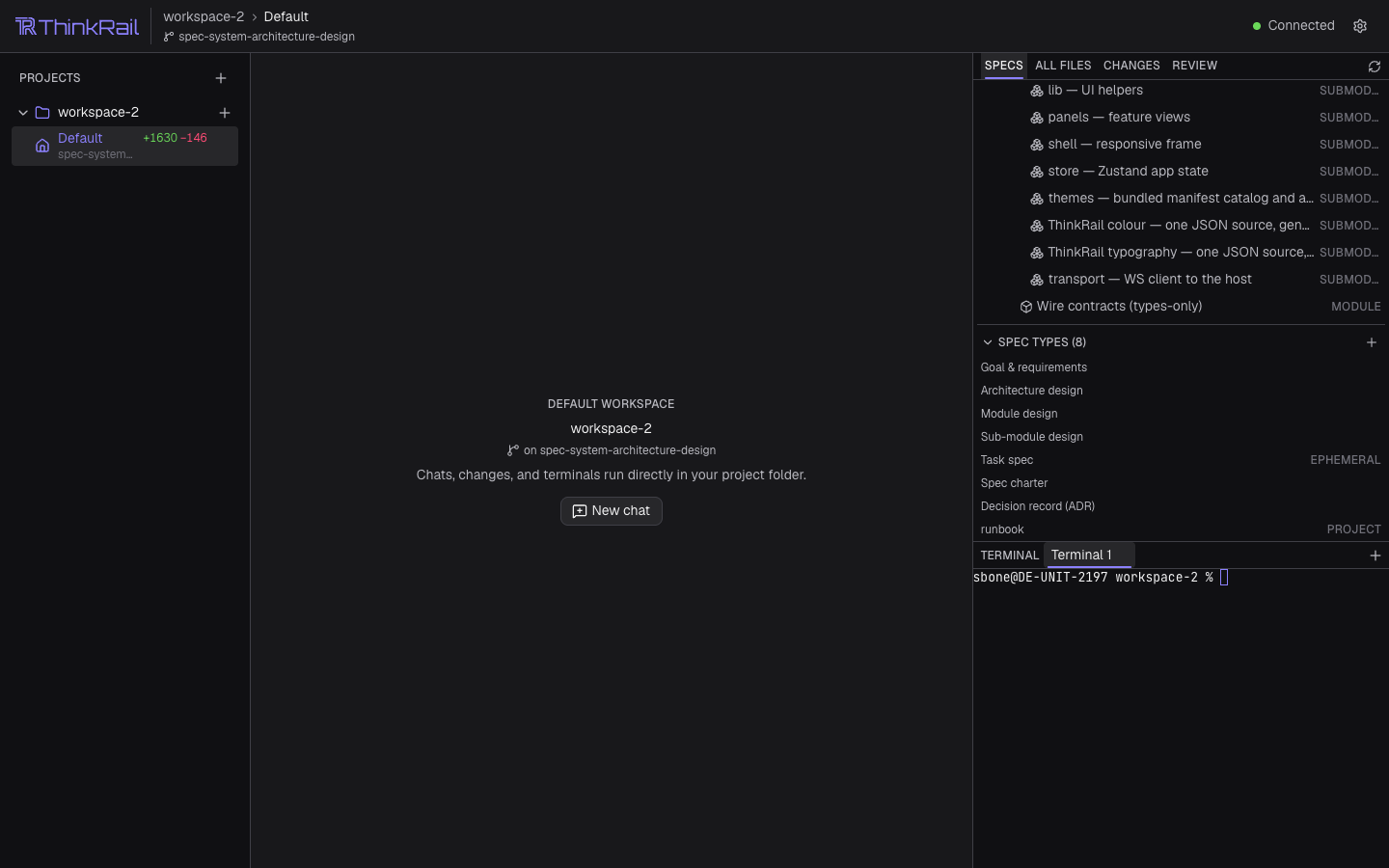

After save — runbook — PROJECT joins the registry (SPEC TYPES (8))

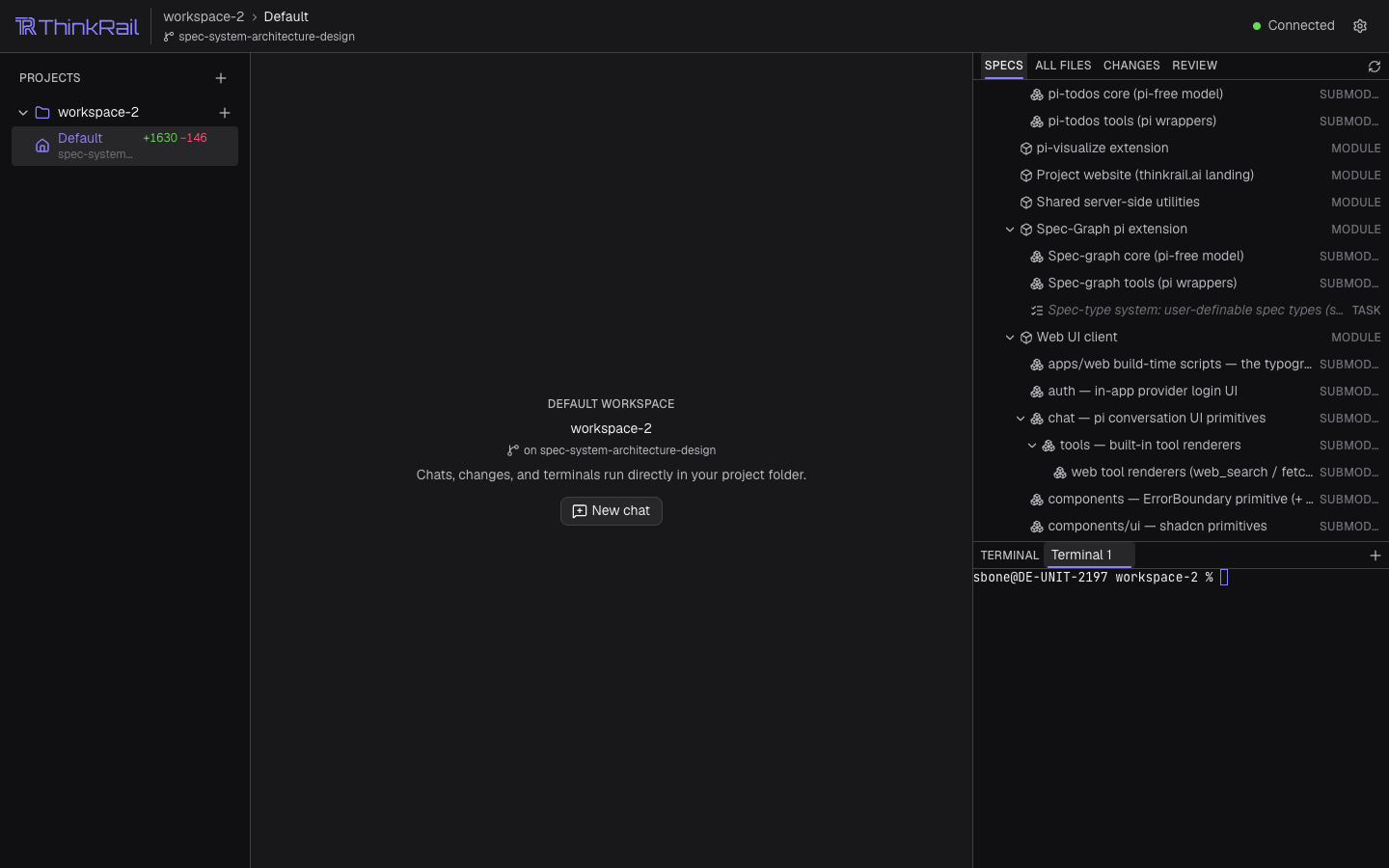

Ephemeral specs render dimmed/italic in the tree (our own task-spec, dogfooded)

Verification

• check:deps · check:seams · lint · typecheck — green
• Unit: 69 (spec-graph) · 581 (server) · 475 (web) — green
• Full e2e: all 8 shards, 203 tests — green (one pre-existing history-search CPU-contention flake, green in isolation, unrelated area)
• The screenshots above are a live end-to-end run of the new path: constructor → spec.saveTypeCard → .pi/spec-types/runbook.md on disk → fs-tick refetch → registry shows the new type

Recorded for P2 (not in this PR)

User-local ~/.pi/agent/spec-types/ · advisory conformance warnings in spec_validate (incl. near-duplicate-prose detection) · pinned legend + viewer polish · custom link kinds (supersedes) · covers-based drift detection (holds architecture.md's deferral)

[Rustam Sadykov (SBOne-Kenobi)]

The chat side — the agent using the type registry (live run)

The other half of the system: what the agent does with type cards in a chat. This is a real claude-sonnet-5 run against a throwaway sample repo (fresh git repo, one README, zero specs), driven end-to-end through the UI.

Prompt: "Run spec_types to list this project's registered spec types. Then read the decision type card and create one decision spec with spec_create …"

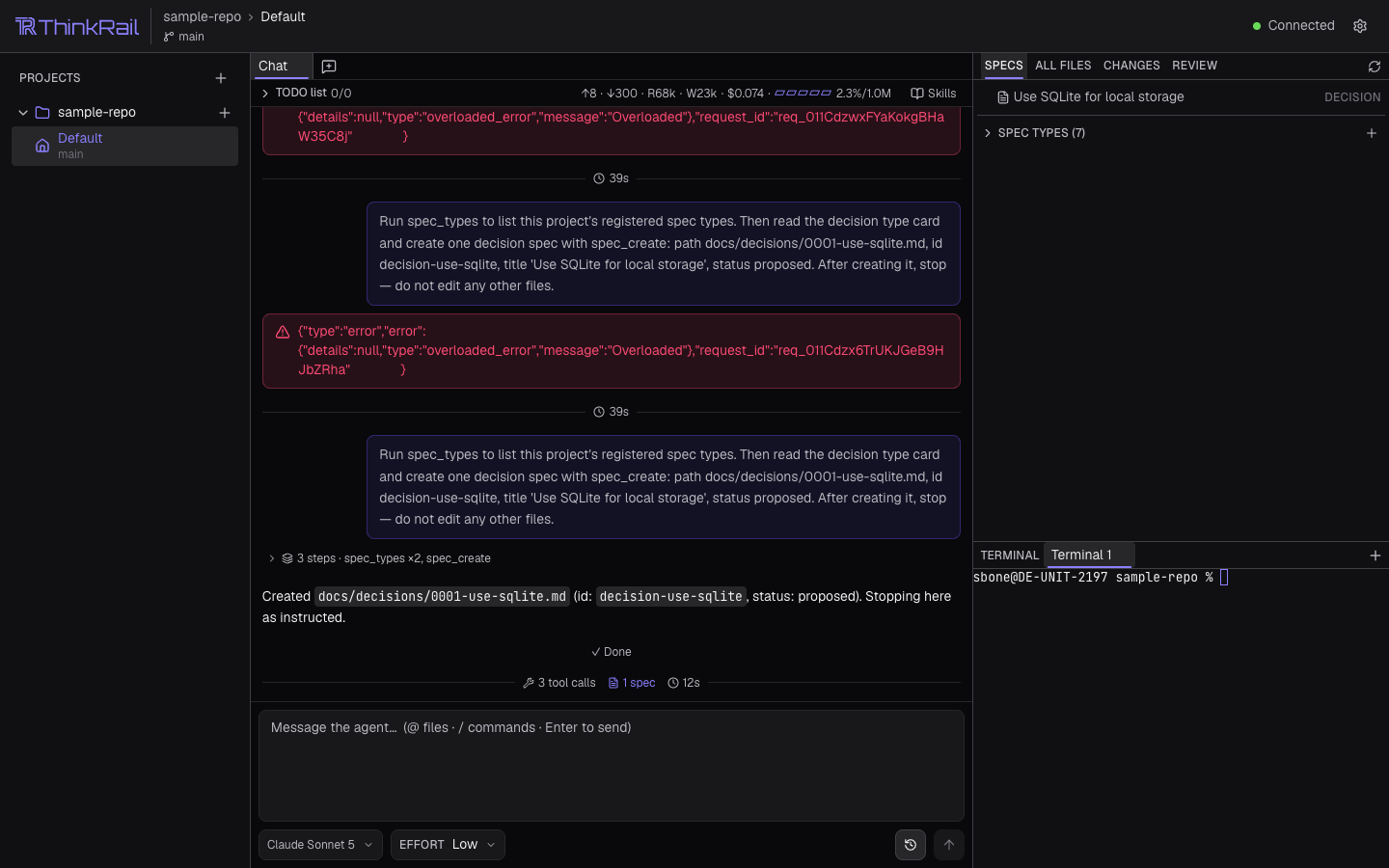

The run: tool steps → result → the divider's "1 spec" chip → the Specs panel updates

• 3 steps · spec_types ×2, spec_create — the agent discovered the types, read the decision card, then created against it (exactly the norm the skill sets).
• The turn divider counts 3 tool calls · 1 spec · 12s — the "1 spec" chip classifies the written file as a spec off the same registry-backed snapshot the panel renders.
• Right panel: "Use SQLite for local storage — DECISION" appears without a manual refresh.
• (The two red bubbles above are honest transcript history: Anthropic returned overloaded_error twice before we switched models — provider weather, not this PR.)

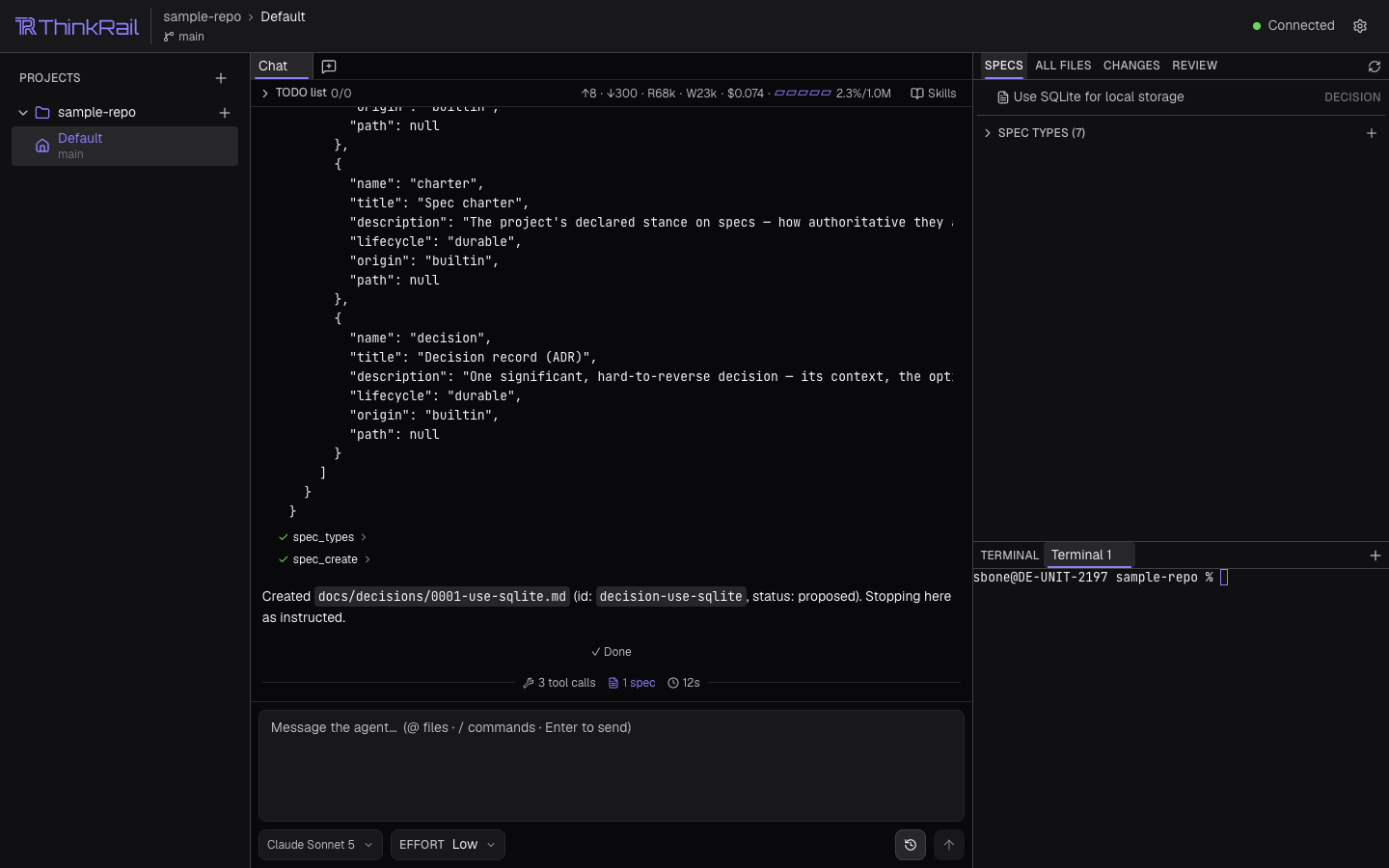

spec_types expanded — the registry as the agent sees it

Each entry carries name / title / description / lifecycle / origin — the same card data the UI legend shows, one source of truth.

What landed on disk (card-driven scaffold, per-type statuses)

---
id: decision-use-sqlite
type: decision
status: proposed        # validated against the decision card's proposed|accepted|superseded
title: Use SQLite for local storage
---

## Context

## Options considered

## Decision

## Consequences

The headings come from the decision card's sections — the agent never invented a structure, and status: proposed passed because the card narrows the vocabulary for this type.
