feat(web): graph legend and rich node hover cards

[Savid]

What

Two new affordances for reading the fork-choice graph's visual vocabulary, both driven by a single shared style table so they can never drift from the nodes:

1. Stage legend — a collapsible glass pill bottom-left of the stage that expands into a panel explaining every node state, the progress-ring semantics and (in aggregated view) the counter glyphs.
2. Node hover cards — rich, animated hover/focus cards on every graph node and truncation marker, filling the gap between "hover = brightness bump" and "click = full slide-over dialog".

Why

The graph's vocabulary couldn't be self-taught: canonical and fork blocks are both labeled VALID with only hue distinguishing them, detached shares invalid's red, and the progress ring means weight share in single-node view but source agreement in aggregated view. And the only way to inspect a block was the heavyweight slide-over.

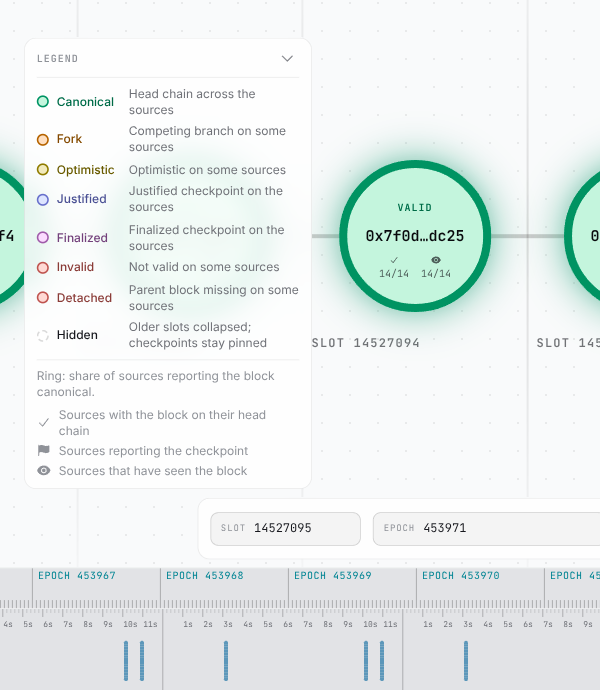

Legend

• Collapsed pill (six status dots) by default; expands to a panel matching the Sources-panel chrome. Swatches are miniature real nodes rendered from the shared NODE_STYLES table.
• Mode-aware: weighted vs aggregated row descriptions, ring-meaning footnote, and the ✓/⚑/👁 counter explanations only in aggregated view. Plus a row for the dashed truncation marker.
• Anchoring: clears the floating playback dock (97px strip + ~66px dock; 138px strip at xl with the epoch dial) and flows down beside the dock from 2xl where the corner is wide enough (the dock is a constant ~886px centered, so its left edge clears the panel at ≥1542px). BYO/snapshot footers are flat strips, so the legend sits low there at all widths.

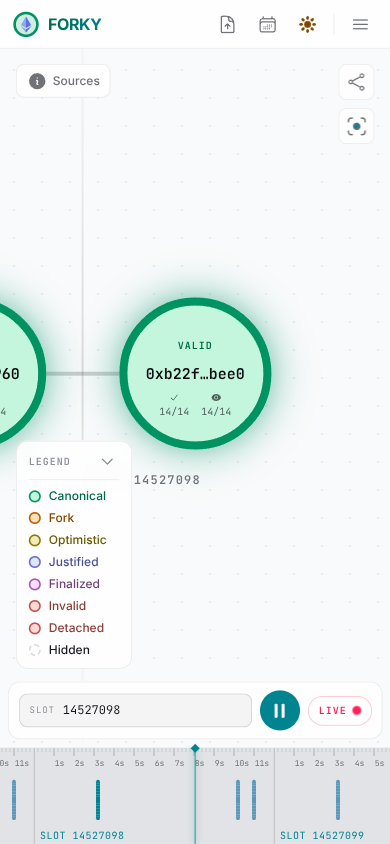

• Mobile: compact swatch+name-only panel — prose rows appear from sm up.

Hover cards

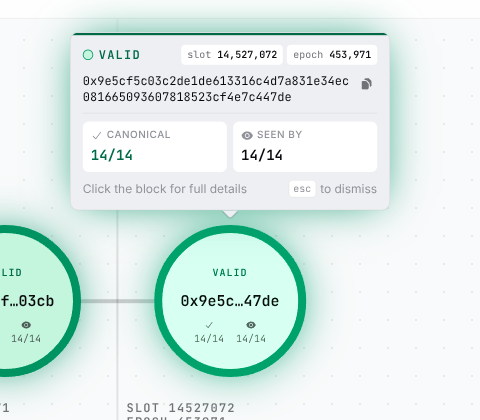

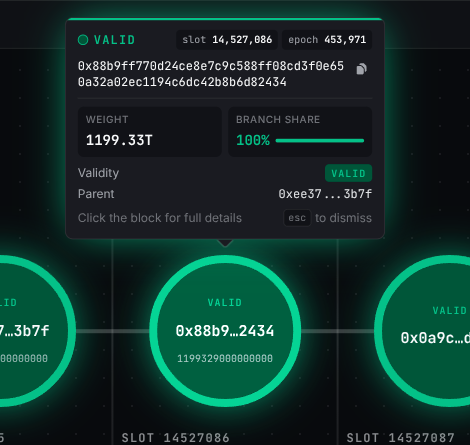

Aggregated view (light)	Single-node view (dark)

Built on @floating-ui/react (new direct dependency, pinned 0.26.28 to dedupe with the copy Headless UI v2 already bundles — Headless UI deliberately ships no tooltip, and its Popover is click-trigger by design):

• Interaction: 150ms-delay hover with safePolygon (pointer can travel onto the card), keyboard-focus trigger, Escape dismiss, pointer-only (touch keeps opening the slide-over directly). Meets WCAG 1.4.13 (hoverable / dismissible / persistent).
• Rendering: portal-rendered so the card never scales with the graph zoom, re-anchored every animation frame so it follows its node while panning; 180ms ease-out fade/rise entrance with an arrow tying the card to its node.
• Chrome: hairline top bar + soft halo in the node's status ring color.
• Content: status header with slot/epoch chips, full block root with a copy button, stat tiles (weight + branch-share meter, or canonical/seen source counts), validity chip, checkpoint votes and not-valid/optimistic/detached counts, parent root, and an esc hint.
• Mainnet-scale numbers: slot/epoch chips wrap instead of overflowing, and 15+ digit weights display compact notation (1199.33T) with the exact value on the title attribute.
• Graph nodes are now keyboard-focusable (role="button", Enter/Space activates) and the truncation marker's native title tooltip is folded into the same card system.

Refactor

NODE_STYLES was duplicated verbatim in WeightedNode and AggregatedNode; it now lives once in utils/nodeStyles.ts and feeds the nodes, the legend swatches and the card accents.

Storybook

• Components/Legend: both modes expanded, collapsed pill, expand/collapse play test, aggregated-counters assertions, iPhone-viewport stories.
• Components/Graph Primitives: static card galleries for every weighted/aggregated state (rendered in the real card chrome) including a mainnet-scale variant, plus pointer-interaction stories (hover opens, Escape dismisses) for nodes and truncation markers.
• Parts/Graph: legend expand/collapse in both view modes and a hover-card test against the live graph head.

Notes for reviewers

• Three targeted eslint-disable react-hooks/refs comments in HoverCard.tsx: the rule's heuristic misfires on floating-ui's stable callback refs (refs.setReference/setFloating/arrow({element})), which are designed for render-time attachment.
• The cards keep role="tooltip" despite the copy button; strict ARIA would call an interactive hover surface a dialog, but full focus management felt disproportionate for a progressive-enhancement button (keyboard users have the slide-over).
• The legend's 2xl drop-down breakpoint assumes the playback dock keeps its current width; if fields are added to Control, the threshold may need a nudge.
• The docs: screenshots commit only adds the images referenced above — drop it before merge if you don't want them in history.

pnpm lint, pnpm typecheck, pnpm test (125 unit + 98 storybook incl. the new interaction tests) and pnpm build all green.
